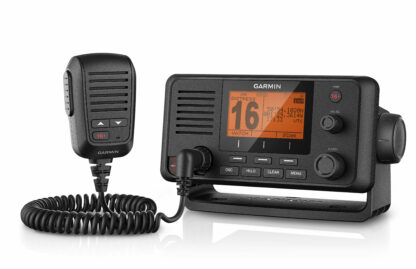

Garmin VHF 215i AIS Marine Radio

829,13 incl. VAT

Communication and situational awareness are critical on the water. This fixed-mount VHF 215i AIS radio displays AIS on the chartplotter to enhance communication, situational awareness and collision avoidance between you and other mariners worldwide.

Increase your peace of mind

During an emergency situation, the 25-watt transmit power of VHF 215i AIS gives fishermen, sailors and cruisers confidence at their fingertips.

Communicate confidently on the water

Easy to install and use, just plug and play to compatible Connect it via plug and play to compatible Garmin chart plotters and multifunction displays over the NMEA 2000®network. VHF 215i AIS provides standard Class D DSC functionality (distress calling and direct calling with user-programmed MMSI). The marine radio is preprogrammed with international marine channels. It’s also NMEA 0183 compatible and includes a two-way hailer system for onboard communication.

Communicate with style

Because your helm is a source of pride, the VHF 215i AIS marine radio is designed to complement the appearance of GPSMAP®7×2/9×2, GPMAP 10×2/12×2, GPSMAP 7400/7600 and GPSMAP 8400/8600 chartplotters and MFDs.

SKU: 010-02098-01 Categories: , , Tags: , ,

Description

Produkt Specification

  • Unit dimensions, HxWxD: 9.8 x 19.7 x 14.9 cm
  • Weight: Radio without microphone 1.2 kg; Microphone 0.25 kg
  • Water rating: IPX7
  • Temperature range: Operating from -15°C to 70°C; Storage from -20°C to 70°C
  • Compass-safe distance: 75 cm
  • NMEA 2000: Yes
  • NMEA 0183: Yes
  • Digital selective calling: Class D
  • Frequency Bands: All international marine channels
  • Operating voltage: 12.0 Vdc
  • Current draw: Standby 350 mA; Receive 600 mA; Transmit from 2.0 A to 6.0 A (from 1 W to 25 W)
  • Frequency range: 156.050 MHz to 163.275 MHz (including WX channels)
  • Hailer output power: 20 W at 4 Ω
  • Hailer horn impedance: 4 Ω
  • External speaker impedance: 4 Ω
  • Antenna connector: S0-239 (50 Ω)
  • Maximum antenna gain: 9 dBi

Additional information

Weight 1200 kg
Dimensions 9,8 × 19,7 × 14,9 cm
In the Box

VHF 215i AIS-Marine Radio
Removable fist mic
Fist mic mounting bracket and hardware
Bail mount with knobs and mounting hardware
Protective cover
Trim ring snap cover
Flush mount gasket
Power cable
Documentation
