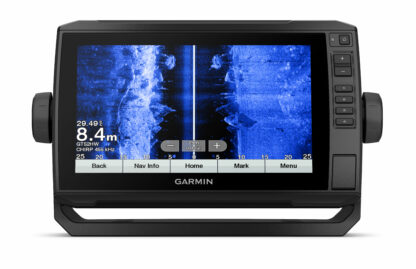

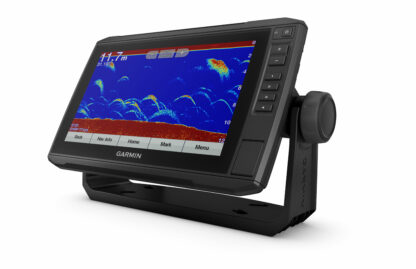

ECHOMAP™ Plus 92sv
ECHOMAP™ Plus 92sv
ECHOMAP™ Plus 92sv

ECHOMAP™ Plus 92sv

€899,00 – €1.049,00 incl. VAT

Touch button operation optional with encoder GT52HW-TM

Bright, sunlight-readable 9” combo offers the convenience of a keyed-assist touchscreen.

ncludes support for crisp, clear Garmin CHIRP traditional sonar, CHIRP ClearVü and CHIRP SideVü scanning sonars, and it’s also compatible with Panoptix all-seeing sonar.

Preloaded worldwide basemap and BlueChart g2 HD and BlueChart g2 Vision HD compatibility.

Plus, Quickdraw Contours mapping software to instantly create personalised fishing maps on-screen with 1 foot contours as you fish.

t also has built-in Wi-Fi® to pair with the free ActiveCaptain app for access to OneChart, which allows you to purchase and download new charts.

ActiveCaptain also gives you access to smart notifications1, the ActiveCaptain community for marina and other points of interest details, Quickdraw Community data and more.

Features quick-release bail mount to make it easy to remove and take with you.

Transom and trolling motor mounts included.

SKU: N/A Categories: , , , , , , Tags: , , ,

Description

Features

  • Data Card Support 1 microSD ™ memory card; maximum card size of 32 GB
  • Track log 50,000 points; 50 saved tracks
  • Routes 100
  • Maximum depth 2,300 ft @ 77 kHz, fresh water / 1,100 ft @ 77 kHz, saltwater
  • Dual-frequency (50/200 kHz) sonar capable Yes
  • Transmit power 500 W (RMS) / 4,000 W (peak to peak)
  • SiriusXM™ Weather & Radio compatible Yes
  • Water temperature log and graph Yes
  • Supports FUSION-Link™ compatible radios Yes
  • Power consumption 18W
  • NMEA 0183 output ports 1
  • NMEA 2000® compatible Yes
  • Voltage range 10-20 Vdc input
  • Bottom lock (shows return from the bottom up) Yes
  • CHIRP sonar technology Yes (Built-in)
  • NMEA 0183 compatible Yes
  • Transducer pin numbers 12
  • Supports AIS (tracks target ships position) Yes
  • Sonar history rewind Yes
  • GRID™ (Garmin Remote Input Device) compatible No
  • Garmin Radar compatible No
  • Supports DSC (displays position data from DSC-capable VHF radio) Yes
  • Garmin Marine Network™ ports 1 Panoptix™ port
  • Garmin Sonar compatible Yes
  • NMEA 0183 input ports 1
  • Wireless connectivity Yes
  • Sonar recording Yes
  • Dual-beam (77/200 kHz) sonar capable Yes
  • Waypoints 5,000
  • Tide tables Yes

Additional information

Weight 1 kg
Dimensions 28,2 × 16,4 × 6 cm
Product specifications

Physical dimensions 11.4" x 6.5" x 2.4" (28.2 x 16.4 x 6.0 cm)
Water rating IPX7
Mounting options Mounting with mounting bracket or flush
Antenna Internal or external via NMEA 2000
Receiver 5 Hz
Display size 7.8" x 4.8"; 9" diagonal (19.9 x 11.3 cm; 22.9 cm diagonal)
Display resolution 400 x 800 pixels
Weight 1 kg
Display type WVGA display
In the Box

ECHOMAP Plus 92sv
GT52HW-TM transducer (depending on version)
Power/data cable
Tilt/swivel mount with quick release cradle
Flush mount
Protective cover
Hardware
Documentation
Donors

Only device without transducer, With GT52 TM transducer
